Large hybrid systems

Product features

1.Loads exceeding 500 kW, it is recommended to use a large-capacity 500 kW single-unit energy storage inverter, which are capable of supporting up to four sets of parallel connections, achieving atotal power output of 2 MW；

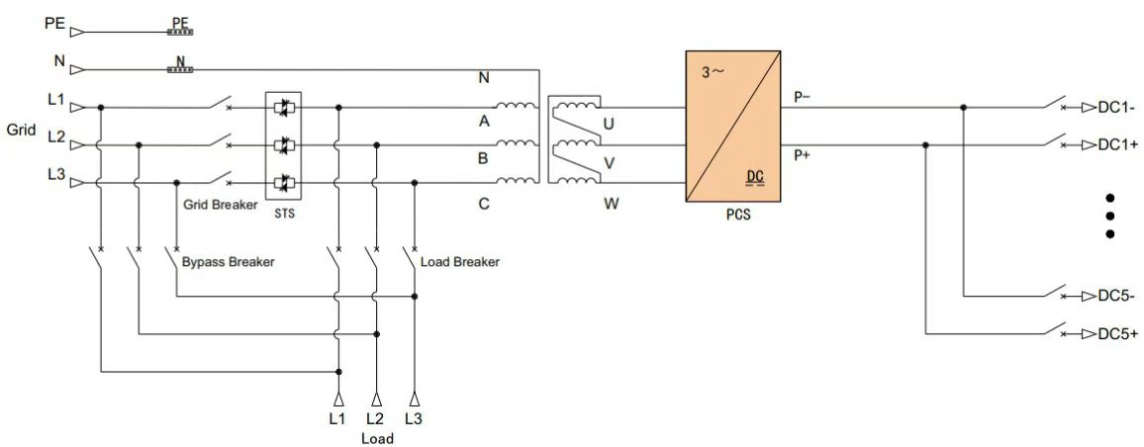

2.When operating multiple 500 kW systems in parallel and distributing STSacross different 500 kW inverters, it is crucial to ensure that the cablelength from the grid tie-point to the load tie-point is consistent；

3.The hybrid ESS employs DC-coupled photovoltaic integration, achieving high energy conversion efficiency and optimized for off-grid scenarios with PV generation capacity exceeding load demand; Outdoor-rated MPPT

controllers integrate combiner and MPPT functionalities into a single hardened enclosure. The complete system includes a diesel generator ATS option, a 300kW hybrid inverter, PV MPPT controller, and a battery

energy storage system.

Specification
