200kWh/225kWh Battery Energy Storage System
The 200kWh/225kWh Battery Energy Storage System incorporates a unified DC input interface and battery control box for automatically controlling photovoltaic MPPT to protect battery charging.
Model:200kWh/225kWh
Send Inquiry
Product Description
The 200kWh/225kWh Battery Energy Storage System from Daya is a high-efficiency energy storage solution designed for commercial and industrial applications. Engineered with a flexible three-level BMS architecture that supports multiple clusters of batteries connected in parallel, it enables easy installation and space saving. The system features optional PV DC-coupled access with a hub-and-spoke MPPT controller, along with a unified DC input interface and battery control box that automatically manages photovoltaic MPPT to protect battery charging, making it an ideal choice for reliable and scalable energy storage.
Product features
1.Flexible configuration with additional 3 levels of BMS, supporting multiple clusters of batteries connected in parallel；
2.Easy installation, compact size and small occupation ；
3.Optional PV DC-coupled access to match a hub-andspoke MPPT controller；
4.The battery energy storage system incorporates a unified DC input interface and battery control box for automatically controlling photovoltaic MPPT to protect battery charging.

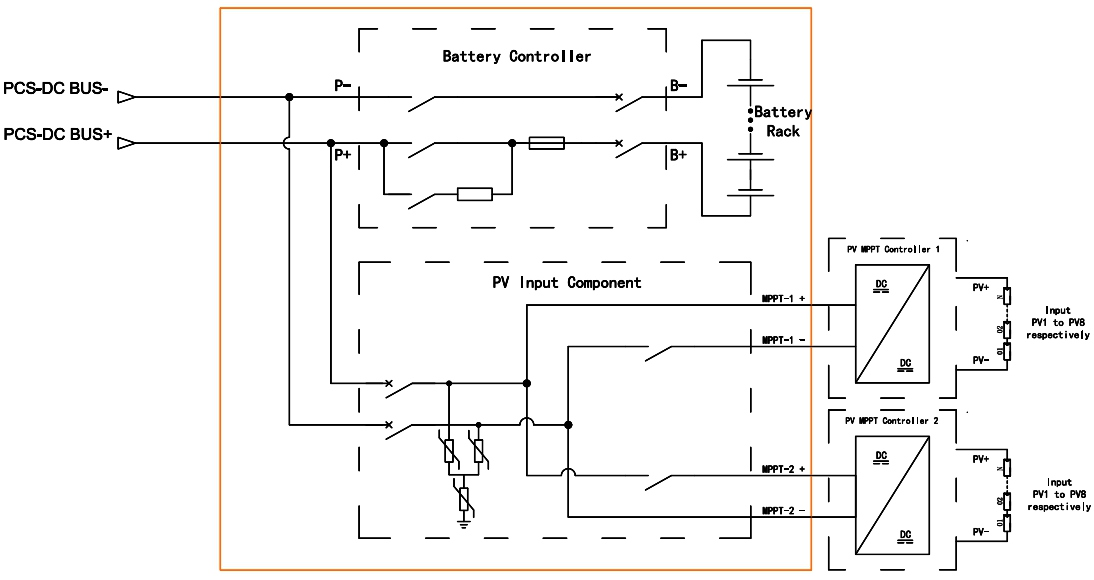

wiring diagram
Specification
|
Models |
E200-400-A | E225-400-A | |
|
Battery DC-side parameters |
Celltype | LFP 280Ah | LFP 314Ah |
| Pack capacity &configuration | 14.336kWh/1P16S | 16.077kWh/1P16S | |
| Capacity and pack quantity | 200kWh/14 | 225kWh/14 | |
| Charge/Discharge C-Rate | ≤0.5C | ||
| Depth of discharge | 100%DOD | ||
| Cycle index | 8000cls(0.5P,25±2℃,@70%SOH) | ||
| Temperature monitoring points | 112 | ||
|
Inverter DC-side parameters |
Rated current | 200A | |
| Rated power | 143.4kW | ||
|
DC -Side PV parameters |
Number of input branches | 2 Channels(Configurable with 2 PV MPPT controllers) | |
| Rated current | 168Ax2 | ||
| Rated power | 120kWx2 | ||
|
System parameters |
Voltage range | 627V-806V | |
| Rated voltage | 716.8V | ||
| Operating temperature | -30～55℃ | ||
| Relative humidity | 0~95%RH,Non-condensing | ||
| Dimensions(W*D*H) | 1050×1050×2350mm | ||
| Weight | 2100kg | ||
| IPgrade | IP54(Complete machine) | ||
| Noise | <70dB | ||
| Cooling concept | Forced air cooling | ||
