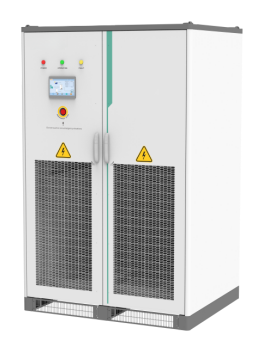

Medium Hybrid System
A Medium Hybrid System integrates photovoltaic (PV) power generation, energy storage, and intelligent control. Large hybrid systems can operate in both grid-connected and stand-alone modes, ensuring continuous and stable power supply.
Send Inquiry
Product Description
|

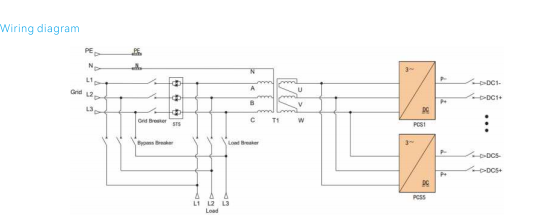

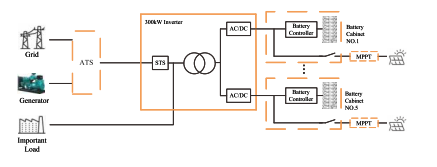

Feature TheMedium Hybrid System utilizes modular inverter units in parallel configuration, where each inverter module's DC input corresponds to a dedicated battery cabinet, enabling per-cluster management to eliminate circulating currents between battery strings. The AC/DC power modules support flexible deployment in both quantity and power rating, with a maximum capacity of 60kW modules in a 5-unit parallel configuration. The AC output from the power modules is delivered through a transformer isolated output stage, supplying power to the load with strong resistance to current shock. The hybrid ESS employs DC-coupled photovoltaic integration, achieving high energy conversion efficiency and optimized for off-grid scenarios with PV generation capacity exceeding load demand; Outdoor-rated MPPT controllers integrate combiner and MPPT functionalities into a single hardened enclosure. The complete system includes a diesel generator ATS option, a 300kW hybrid inverter, PV MPPT controller, and a battery energy storage system.
Feature The system utilizes modular inverter units in parallel configuration, where each inverter module's DC input corresponds to a dedicated battery cabinet, enabling per-cluster management to eliminate circulating currents between battery strings. The AC/DC power modules support flexible deployment in both quantity and power rating, with a maximum capacity of 60kW modules in a 5-unit parallel configuration. The AC output from the power modules is delivered through a transformer isolated output stage, supplying power to the load with strong resistance to current shock. The hybrid ESS employs DC-coupled photovoltaic integration, achieving high energy conversion efficiency and optimized for off-grid scenarios with PV generation capacity exceeding load demand; Outdoor-rated MPPT controllers integrate combiner and MPPT functionalities into a single hardened enclosure. The complete system includes a diesel generator ATS option, a 300kW hybrid inverter, PV MPPT controller, and a battery energy storage system.
Specifications |
|||||
| Models | P200TS-400-A | P250TS-400-A | P300TS-400-A | ||
|
DC-Side parameters |
Voltage range | 650-950Vdc | |||
| Per-module input switch | 250A | ||||
| Number of DC channels | 3路 | 4路 | 5路 | ||
|
AC-Side parameters (grid-connected) |
Rated output power | 200kW | 250kW | 300kW | |
| Maximum output power | 220kW | 275kW | 330kW | ||
| Rated output current | 289A | 361A | 433A | ||
| THDi | <3% | ||||
| Grid type | 3W+N+PE | ||||
| Voltage range | 360Vac~440Vac | ||||
| Frequency range | 45~55Hz/55～65Hz | ||||
| Power factor | -1~1 | ||||
|
Islanded AC-side parameters |
Rated output power | 200kW | 250kW 300kW | ||
| Rated output voltage | 400Vac | ||||
| Rated output frequency | 50/60Hz | ||||
| THDu | <1%线性，<5%非线性<1%linear,<5%nonlinear | ||||
| Overload capacity | 110%过载10分钟110%10mins | ||||
|
Grid-Islanding Transfer and switchgear |
Maintenance bypass switch | 400A | 630A | ||
| Grid switches | 630A | 800A | |||
| Load switches | 400A | 630A | |||
| STS unit | 577A/400kW | 722A/500kW | |||
| Switching time | <20ms | ||||
|
Systems parameters |
Peak efficiency | 97.5% | |||
| Operating temperature | -30～55℃-30~55℃(Derating above 40℃) | ||||
| Relative humidity | 0~95%RH,0~95%RH,Non-condensing | ||||
| Dimensions(L*D*H) | 1300×1050×2050mm | ||||
| Weight | 1400kg | 1700kg 1800kg | |||
| IPgrade | IP21 IP21(Full set) | ||||
| Noise | <70dB | ||||
| Display screen | LCD touch-screen | ||||
| BMS communication | CAN | ||||
| EMS communication | TCP/IP | ||||
