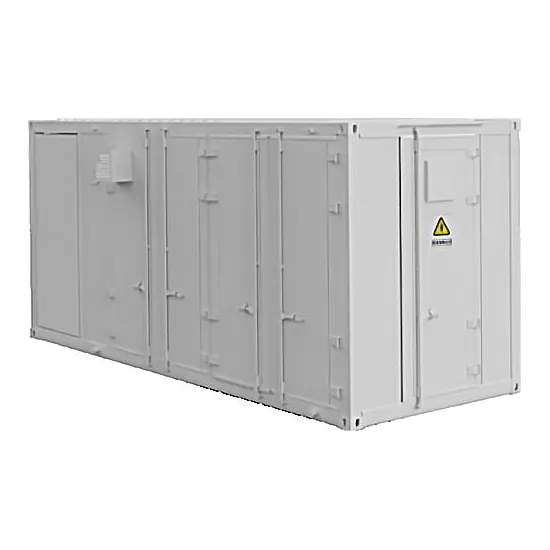

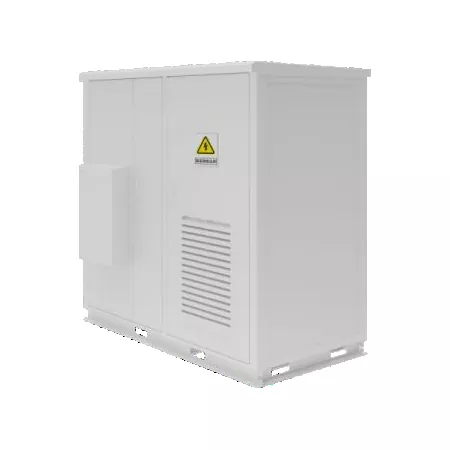

Energy Storage Cabinet

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Energy Storage Cabinet. We look forward to cooperating with you.

Send Inquiry

PDF DownLoad

Product Description

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Energy Storage Cabinet. We look forward to cooperating with you.

Technical Parameters

Cell parameters
Cell type	Lithium iron phosphate(LFP) 280Ah
Rated voltage	3.2V
Depth of discharge	Deep discharge 90%

Rated power	215KWh	604.8KWh	1MWh
Battery rated voltage	768V	720V	720V
Battery voltage range	600V-876V	560V-820V	560V-820V
DC discharge current	140A	140A	140A
Single Cluster Battery Pack	16S1P	15S1P	15S1P
Number of battery	15PCS（15S）	45PCS（15S3P）	75PCS（15S5P）

Rated power	100KW	300KW	500KW
Rated grid voltage	400V
Rated AC current	140A
Allowable voltage range	360V~440V
Rated grid frequency	50Hz/60Hz
Power Factor	>0 .99
AC access method	3W+N+PE

System efficiency	>86%
Cycle life	>6000(25℃ 0. 5C ＞90%DOD 70%EOL)
Cooling method	Air Cooling
Allowable ambient temp.	-30~ 50℃
Maximum working altitude	4000m(＞2000mDerating is required)
Fire mode	Heptafluoropropane gas fire extinguishing device
Degree of protection	IP54
Communication method	RS485/CAN
Operating mode	Microgrid, UPS, Backup power
