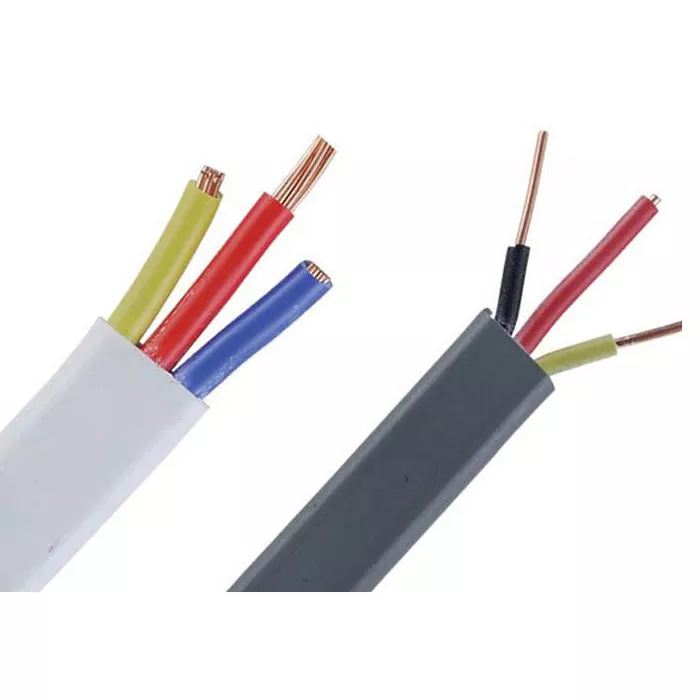

Flat Wire Ribbon Cable

DAYA electrical stands as a renowned Flat Wire Ribbon Cable manufacturer and supplier in China, with a profound expertise in high voltage equipment. Boasting competitive pricing, our products have garnered a significant market share in South America, the Middle East, Africa, and Southeast Asia. We aspire to forge long-lasting partnerships with you in China. Flat Wire Ribbon Cable is predominantly crafted from copper or aluminum, utilizing these conductive materials to efficiently transport electricity to various sections of your home. These wires are insulated, ensuring safe and reliable power transmission.

Send Inquiry

Product Description

Selecting the appropriate wire or cable during a new wiring installation is crucial. Conversely, when assessing old wiring in a home, identifying the wire type offers insights into the specific circuit it belongs to. Wiring in modern homes tends to be standardized, and homes constructed after the mid-1960s commonly utilize similar wiring types. It's essential that any new electrical installation adheres to the current local building codes, necessitating the use of updated wiring.

DAYA Flat Wire Ribbon Cable Details

DAYA Flat Wire Ribbon Cable Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA Flat Wire Ribbon Cable Parameter (Specification)

Secion

nsulation Thickness

Sheath Thickness

Overall Diameter

CableWeight   Electrical Resistance

No.xmm2  Classof Conductor

mm

mm

mm

kg/km

DC.20'C

0/ k m

2x1.75

1

0.6

0.9

4.6x7.1

38.5

24.5

2x1.0

1

0.6

0.9

4.8x7.4

45

18.1

2x1.5

1

0.7

0.9

5.3x8.5

60

12.1

2x2.5

1

0.8

1.0

6.2x10.1

88.5

7.41

2x4

1

0.8

1.0

6.7x11.1

122.5

4.61

2x4

7

0.8

1.0

6 . 9xll . 5

128

4.61

2x6

1

0.8

1.1

7.5x12.5

169

3.08

2x6

7

0.8

1.1

7.8x13.0

176

3.08

2x10

7

1.0

1.2

9.Sx16.2

282

1.83

3x0.75

1

0.6

0.9

4.6x9.6

55

24.50

3x1.0

1

0.6

0.9

4.8x10.1

64

18.10

3x1.5

1

0.7

0.9

5.3x11.7

87

12.10

3x2.5

1

0.8

1.0

6.2x14.0

128

7.41

3x4

1

0.8

1.0

7.0xlS.8

183

4.61

3x4

7

0.8

1.0

7 . lx16 .3

192

4.61

3x6

1

0.8

1.1

7.5x17.5

247

3.08

3x6

7

0.8

.1.1

7.8x18.2

257

3.08

3x10

7

1.0

1.2

9.5x23.0

413

1.83

DAYA Flat Wire Ribbon Cable Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA Flat Wire Ribbon Cable FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.


2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.


3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.


4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.


5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.


6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
