100kW/200kWh Hybrid Energy Storage System
An on-grid and off-grid energy storage system integrates photovoltaic (PV) power generation, energy storage, and intelligent control. It can operate in both grid-connected and stand-alone modes, ensuring continuous and stable power supply.
Model:100kW/200kWh 125kW/225kWh
Send Inquiry
Product Description
Product features
1.High power density, high integration, and compact size
with easy installation；
2.Supports photovoltaic DC access and configures MPPT
controllers, forming DC-Coupled PV-ESS Microgrid ；
3.4G and Wi-Fi online intelligent monitoring, enabling
remote inspections and reducing manual on-site tasks；
4.On-demand deployment with automated operation
and off-grid switching during peak cutting and valley
filling, supporting integrated control of BMS, PCS, and
EMS systems with multiple protections；

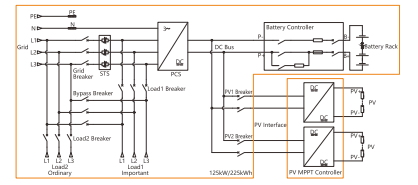

5.Includes standard load, power grid, PV access circuit
breakers and bypass switches, forming integrated
system distribution with All-in-One design;
6.Includes a built-in STS and energy management
system, with switching time of less than 20 milliseconds
between multiple power sources;
7.Supports 1+1 parallel operation.
|
Specifications |
|||
| Models | ESTS100-200kWh-400-A | ESTS125-225kWh-400-A | |
|
DC battery parameters |
Cell type | LFP 280Ah | LFP 314Ah |
| Pack capacity and configuration | 14.336kWh/1P16S | 16.077kWh/1P16S | |
| Battery capacity and pack quantity | 200kWh/14 | 225kWh/14 | |
| Battery voltage range | 627V～806V | ||
| Rated Charge/Discharge C-rate &Current | 0.5C,140A | 0.5C,157A | |
| Cycle index | 8000cls(0.5P,25±2℃,@70%SOH) | ||
| Temperature monitoring points | 112 | ||
|
DC Side PV parameters (MPPT Output side) |
Maximum input power | 200kW | |
| Maximum input current | 320A | ||
| Voltage range/System bus voltage | 650V～800V | ||
| Input switch |
2个250A/1000Vdc/2P, 2P/250A/1000Vdc/2P,corresponding to 2 PVMPPT controller unit |
||
|
Grid-coonected PCS AC-side parameters |
AC rated power | 100kW | 125kW |
| AC Maximum Power | 110kW | 137.5kW | |
| Rated current | 152A | 190A | |
| THDi | <3% | ||
| DC component | <0.5%lpn | ||
| Grid type | 3W+N+PE | ||
| Voltage range | 360VAC~440VAC | ||
| Frequency range | 45~55Hz/55~65Hz | ||
| Power factor | -1~1 | ||
|
Islanded PCS AC-Side parameters |
Rated output power | 100kW | 125kW |
| Maximum single-phase output power | 60kW | ||
| Rated output voltage | 400V | ||
| Rated output frequency | 50/60Hz | ||
| THDu | <3% | ||
| Overload capacity | 110%10 Minutes | ||
|
Grid-Islanding transfer switchgear configuration |
Maintenance bypass switch | 250A/400Vac | |
| Load switch | 250A/400Vac | ||
| Grid switch | 400A/400Vac | ||
| STS | 305A/200kW | ||
| Switching time | <20ms | ||
|
System parameters |
Maximum system efficiency | ≥90% | |
| Operating temperature | -30～55℃-30～55℃(Derating above 40°C) | ||
| Relative humidity | 0~95%RH,Non-condensing | ||
| Dimensions(L*D*H) | 1600×1050×2050mm | ||
| Weight | 2300kg | ||
| IPgrade | IP54 IP54(Complete machine) | ||
| Noise | <70dB | ||
| Networked connection type | 4G/WiFi/4G/WiFi/Etherlink | ||
| Fire protection | Aerosol | ||
| Display screen LCD | |||
