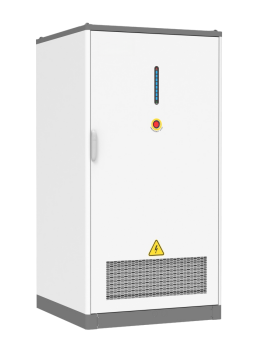

50kW/100kWh Hybrid energy storage system

Features

1.High power density, high integration, and compact size with easy

installation ;

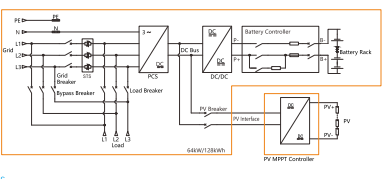

2.Supports photovoltaic DC access and configures MPPT controllers,

forming DC-Coupled PV-ESS Microgrid;

3.The energy storage battery is boosted by a DC/DC converter,

stabilizing the DC bus voltage of the system;

4.4G and Wi-Fi online intelligent monitoring, enabling remote

inspections and reducing manual on-site tasks;

5.On-demand deployment with automated operation and off-grid

switching during peak cutting and valley filling, supporting

integrated control of BMS, PCS, and EMS systems with multiple

protections;

6.Strong off-grid single-phase load capacity, with a maximum single

phase load of 30 kW;

7.Includes standard load, power grid, PV access circuit breakers and

bypass switches, forming integrated system distribution with All-in

One design;

8.Includes a built-in STS and energy management system, with

switching time of less than 20 milliseconds between multiple power

sources;

9.Supports 1+1 parallel operation.

Specifications
