MPPT
MPPT (Maximum Power Point Tracking) is an advanced technique used in photovoltaic (PV) systems and other renewable energy systems to maximize power extraction under varying environmental conditions. An MPPT controller continuously monitors the output of solar panels and dynamically adjusts the operating point to ensure the system operates at the Maximum Power Point (MPP), where the voltage and current combination delivers the highest possible power.
Model:MPPT-8/6/12
Send Inquiry
Product Description
Product features
1, DC generation and DC storage, more efficiency and lower loss, which is suitable for PV and storage power is greater
than the load power off-grid scenarios;
2, IP65 protection, meeting the outdoor use. Nearby MPPT boost convergence output, which helps prevent wiring
confusion caused by multiple photovoltaic (PV) cables being transmitted over long distances to the all-in-one system.
3, 200-900V wide voltage range of photovoltaic input, supporting the industry's high-current photovoltaic module access.
4、Multi-channel MPPT, meeting the PV panel multi-angle

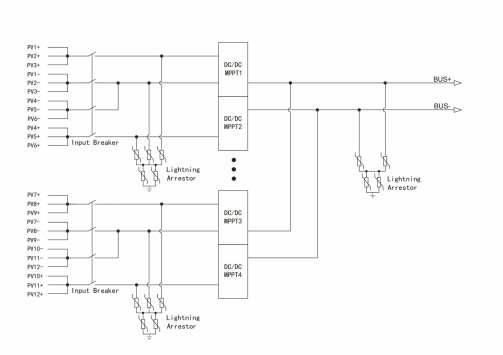

Wiring diagram
Specification
| Models | MPPT-8 | MPPT-6 | MPPT-12 | |
|
PV-Side Interface Parameters |
Maximum PV array voltage | 900V | ||
| MPPT voltage range | 200V-900V | |||
| Rated MPPT voltage range | 560V-900V | |||
| Maximum branch current | 24A | 20A | ||
| PV input strings number | 8个 | 6个 | 12个 | |
| Number of MPPT | 8个 | 2个 | 4个 | |
| Current per MPPT | 20A | 55A | ||
| Output Parameters | Voltage range | 600-950V | ||
| Rated voltage | Default 716.8V,adjustable | |||
| Rated output current | 118A | 84A | 168A | |
| Rated output power | 84kW | 60kW | 120kW | |
| Maximum output current | 192A | 120A | 240A | |
| System Parameters | EUe ciency | 99.4% | ||
| iP grade | IP65 | |||
| Cooling concept | Natural convection | Forced air cooling | ||
| Dimensions(W*D*H) | 550x530x280mm | 630×460×260mm | 630×460×260mm | |
| Weight | 42kg | 25kg | 30kg | |
| Operating temperature | -30～55℃ | |||
| Power supply modes | Self powered(without power comsuption at night) | |||
| Communication Interface | RS485 | |||
