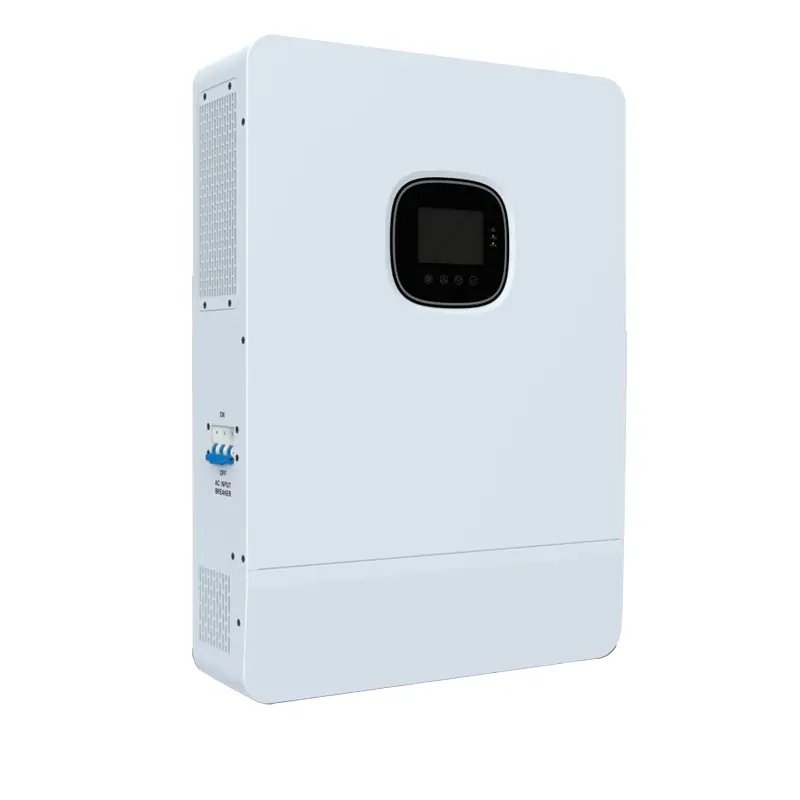

PT Three-Phase Output Hybrid Photovoltaic Storage Inverter
This PT Three-Phase Output Hybrid Photovoltaic Storage Inverter sold by Daya Electric Group company is a more high-tech, low-loss product. Based on the original product, new optimization and upgrades have been carried out, and energy-saving mode, photovoltaic limited mode, hybrid charging mode, etc. can be set to create a more comfortable user experience for customers and meet different customer needs. It adopts advanced SPWM technology, has segmented charging and discharging functions and has a simple and beautiful appearance, which is favored by customers. Whether it is home storage or industrial and commercial storage, it can be used together. Daya Electric Group strives to create high-tech, high-quality new energy products for you.
Send Inquiry
Product Description
PT three-phase output hybrid photovoltaic storage inverter has segmented charging and discharging functions, is equipped with an anti-backflow device, has a built-in MPPT controller, and adopts a fully digital
Double closed-loop control of voltage and current, advanced SPWM technology, pure sine wave output. With insulation resistance and leakage monitoring, any mains/photovoltaic power supply
The lithium battery can be activated when the source is connected, and supports use without batteries. Energy-saving mode can be set to reduce no-load losses. Photovoltaic mode and photovoltaic priority are optional.
It has 4 modes: mains priority and hybrid charging. It has two output modes: mains bypass and inverter output, and has UPS uninterruptible power supply function. suitable
Used in distributed photovoltaic, home energy storage, commercial energy storage and other projects.
Parameter
| Product technical parameters | |||
| Model | PT8K | PT10K | PT12K |
| Rated output power | 8000W | 10000W | 12000W |
| Maximum peak power | 16000W | 20000W | 24000W |
| Rated output voltage | 400Vac(three-phase) | ||
| Load motor capacity | 5HP | 6HP | 6HP |
| Rated frequency | 50/60Hz | ||
| Output waveform | pure sine wave | ||
| switching time | 10ms(Typical value) | ||
| DC battery parameters | |||
| Battery Type | Lithium-ion battery pack/lead-acid battery/custom | ||
| Rated battery voltage | 48VDC | ||
| voltage range | 48VDC-60VDC±0.6VDC(Undervoltage alarm/Shutdown voltage/Overvoltage alarm/Overvoltage recovery- | ||
| Maximum photovoltaic charging current | 180A | 220A | 260A |
| Maximum mains/generator charging current | 100A | 120A | 120A |
| Maximum hybrid charging current | 180A | 220A | 260A |
| PV photovoltaic parameters | |||
| Number of MPPT channels | 2way | ||
| Maximum input power | 6000W+6000W | 7500W+7500W | 9000W+9000W |
| Maximum input current | 22A+22A | ||
| Maximum open circuit voltage | 800VDC+800VDC | ||
| MPPT operating voltage range | 200-600VDC | ||
| AC Mains Generator Parameters | |||
| Input voltage range | phase voltage170-280Vcable voltage305-485V | ||
| Input frequency range | 50/60Hz | ||
| Bypass flow current | 63A | ||
| Inverter efficiency | |||
| MPPT tracking efficiency | 99.9% | ||
| Battery inverter maximum efficiency | 292% | ||
| Communication method | |||
| Built-in interface | RS485/CAN/USB/Drycontact | ||
| External module (optional) | Wi-Fi/GPRS | ||
| Basic parameters | |||
| product size | 620*445*130mm | ||
| product weight | 27kg | ||
| Protection level | IP20 only supports indoor installation | ||
| ambient temperature | -10-55℃,>45℃ | ||
| noise | 560dB | ||
| Cooling method | air cooling | ||
