Real Copper 100%+ IACS Conductivity
Rubber Insulation stays flexible even in cold weather
Temperature Rating -50C to +105C
Resists tears, cuts, abrasions, flame, grease, oil and water
Meets Article 630 NEC for electric welders
Meets SAE J1127 SGR Battery Cable Specifications
VW-1 Flame test as per UL2556
Suitable for battery cable per UL558 & UL583
Rated up to 600 Volts
RoHS Compliant
Made in the USA

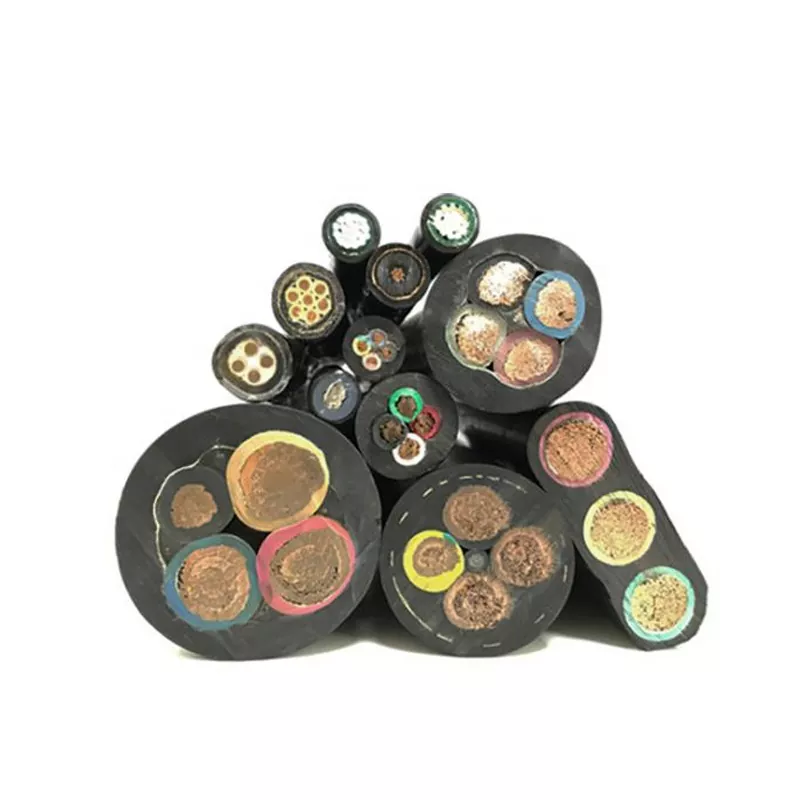

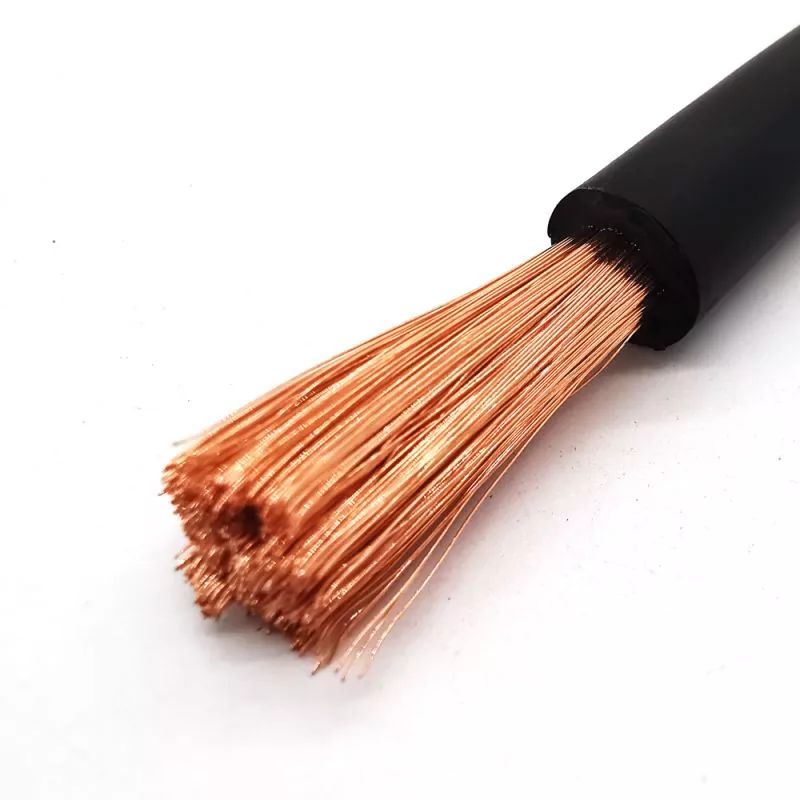

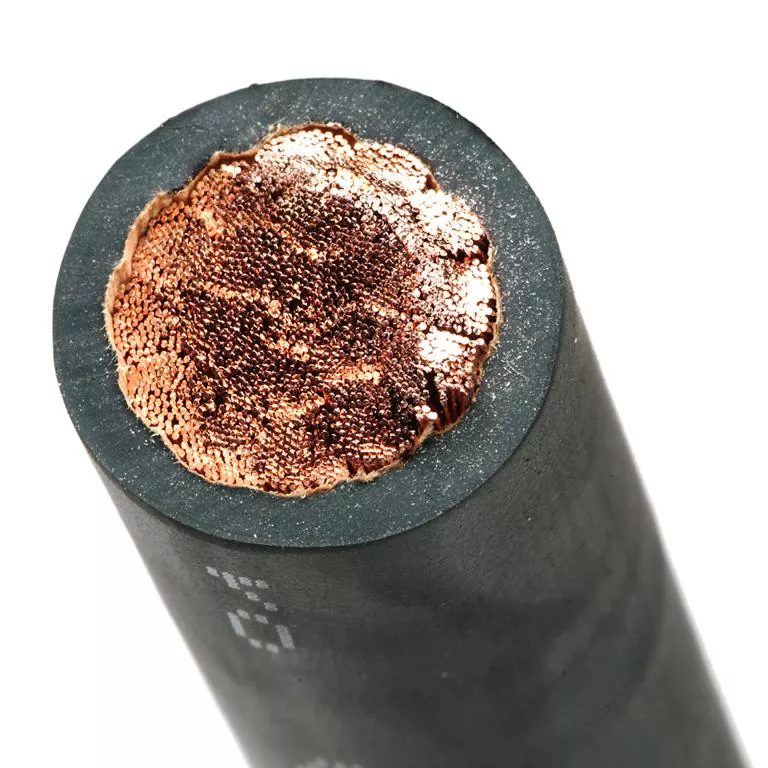

H01N2-D 35mm2 50mm2 70mm2 95mm2 120mm2 Waterproof Rubber Welding Cable use characteristics: Notably, the cable possesses exceptional flexibility and bending capabilities. The sheath is crafted from a blend of natural rubber or neoprene, making it suitable for various applications. The neoprene compound jacket boasts heat resistance, oil resistance, and non-flammability. Notably, the maximum operating temperature of this cable is 85°C.
(1) This cable operates efficiently under conditions of low voltage (up to 600V) and high current, necessitating a certain level of resistance.
(2) The handlebar cable's continuous safe operating temperature should remain below 85°C.
(3) The motor's lead wires undergo frequent movement, twisting, and casting, demanding a high degree of flexibility and bending capabilities.
(4) During casting, the cable is prone to scratches and abrasion from sharp metal components, thus requiring excellent mechanical properties like tear and abrasion resistance.
(5) Due to the complexity of its operating environment, which may include exposure to sunlight, boiling water, muddy water, engine oil, acids, and alkaline liquids, the cable must possess good weather, oil, and solvent resistance.
(6) Occasional exposure to hot welding parts necessitates the cable's ability to resist heat distortion.
(7) Frequent movement requires a cable with a small outer diameter and lightweight. However, because this cable's electrical performance is not exceptionally high and its operating conditions are complex, it's essential to optimize its use and protect it from external damage.
--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.
--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,
--200m or 250m per Drum, two drums per carton,
--305m/Wooden Drum, one drum per outer carton or pallet loading,
--500m/Wooden Drum, one drum per outer carton or pallet loading,
--1000m or 3000m wooden drum, then pallet loading.
*We can also offer customized OEM packing according to clients' request.
Port: Tianjin, or other ports as per your requirements.
Sea freight: FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Part No. |
Nominal conductor area mm and number of cores |
Approx. overall mm |
Approx. weight kg/km |
G-022938 |
2 16mm 1core |
11.1 |
248 |
G-022940 |
2 25mm 1 core |
12.9 |
356 |
G-022944 |
2 35mm 1core |
14.3 |
476 |
G-022945 |
2 50mm 1core |
16.8 |
657 |
G-022946 |
2 70mm 1core |
19.0 |
884 |
G-023032 |
2 95mm 1core |
21.9 |
1156 |
G-023033 |
2 120mm 1core |
23.4 |
1420 |
G-023034 |
2 150mm 1core |
26.0 |
1762 |
G-023035 |
2 185mm 1core |
29.1 |
2145 |
G-023036 |
2 240mm 1core |
31.2 |
2720 |
|
|||
G-023028 |
2 1mm 2core |
7.9 |
89 |
G-023029 |
2 1 5mm 2core |
8.9 |
116 |
G-023030 |
2 2 5mm 2 core |
10.6 |
167 |
G-023041 |
2 4mm 2core |
12.8 |
227 |
G-023042 |
2 6mm 2core |
15.0 |
390 |
