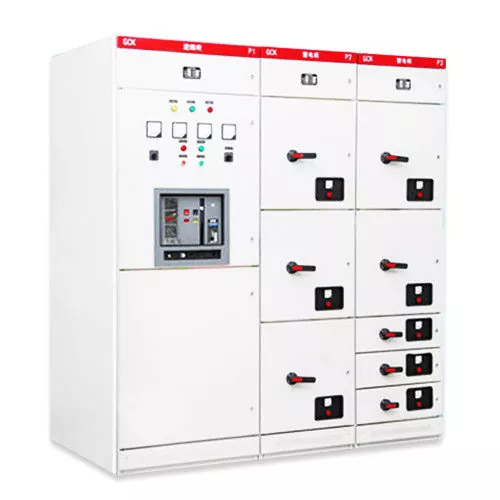

GCS LV Switchgear

DAYA GCS LV Switchgear Details

DAYA GCS LV Switchgear Working conditions

Altitude: ≤ 2000 m.

Temperature range: -5 °C to +40 °C, and the average temperature within 24 hours should not exceed +35 °C.

The relative humidity should not exceed 50% at +40 °C, and higher relative humidity is allowed at low temperature (90% at +20 °C). And air must be clean.

Workplaces should be free of fire, explosion, serious pollution, chemical corrosion and severe vibration.

Gradient: ≤ 5°, vertical installation.

Temperature range of transportation & storage: -25 °C to +55°C, and the temperature can be up to +70 °C in short time (within 24 hours).

DAYA GCS LV Switchgear Parameter (Specification)

The GCS LV Switchgear is tailor-made for power generation and supply systems that operate at a three-phase AC frequency of 50Hz, with a standard operating voltage of 400V (or 690V) and a rated current not exceeding 4000A. It serves crucial purposes such as power transmission, distribution, centralized motor control, and capacitor compensation. Widely utilized in power plants, the petroleum industry, chemical plants, metallurgy factories, textile mills, high-rise buildings, and various other facilities, this equipment adheres to international standards like IEC60439-1, GB7251.1, and JB/T9661.

The cabinet is crafted using an innovative manufacturing process, and each functional unit features a modular design. This modular approach ensures flexibility and ease in combining the units, enabling it to replicate and surpass all the existing schemes and functionalities of GCS and MNS systems on the market.

Cabinet size (mm)

DAYA GCS LV Switchgear Processing characteristics

1. Cabinet Design: All sharp, right-angled edges that operators may encounter have been refined with R angles to eliminate any risk of scratching or injuring personnel. The enhanced busbar frame facilitates simpler installation of busbars while also boasting an aesthetic appeal. The ventilation grid atop the cover features an anti-drip mechanism, and the top cover's open design allows users to effortlessly position horizontal busbars on site.

2. Drawer Construction: The drawer incorporates a double-folding positioning groove rivet riveting process, ensuring all parts are precision-molded in a single operation. This guarantees 100% drawer interchangeability. Additionally, the double-folding and rivet technology eliminates issues like sheet burrs and self-tapping screw tip injuries.

3. Connectors: The innovative connectors for the drawer's incoming and outgoing lines enable direct integration with the function board and metal channel, requiring no additional modifications. The secondary connector offers ease of connectivity and ensures a visually appealing wiring setup.

4. Vertical Channel Flexibility: Users can choose between a half functional board or an iron rectangular channel, both of which are designed for effortless interchangeability.
